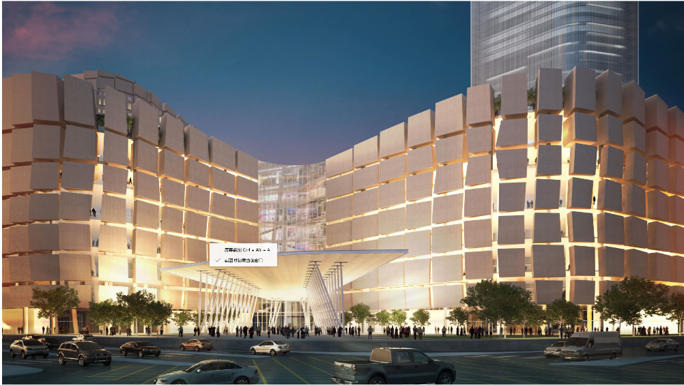

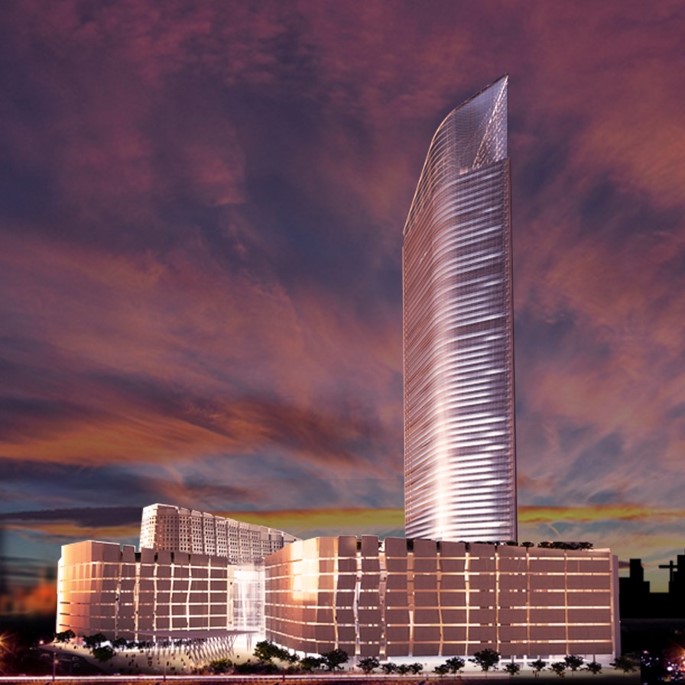

ASSIMA MALL and TOWER with the area of 66,000 m², is a large multi-functional shopping mall, located in the central business district of Kuwait City. The six levels Assima Mall will feature a mix of brands from contemporary, to high-street, many of which have yet to be introduced in Kuwait. The mall will also include the largest hypermarket in Kuwait City. The 54 story Assima Tower with an area ranging from 1000-1,300 square meters and will consist of more than 150 offices, where views will be city and sea facing, and enjoy views of both. This building is designed by PLP Architecture, world well-known architecture consultant firm.

This project is now in construction and expected to complete in February 2020. It will introduce a wide range of choice to satisfy customers’ need with the largest hypermarket in this city.

Technical features:

Glass Compositions are as following:

Flat 17.52mm (88.4) Heat strengthened laminated N60 on grey.

20mm spacer in black color with structural silicone.

12mm fully tempered heat soak tested clear glass.

Curved (arc 2380mm*5430mm):

19.04mm (88.8) Heat strengthened laminated N60 on grey.

20mm spacer in black color with structural silicone.

12mm fully tempered heat soak tested clear glass.

Exterior façade serves important role in architecture design and effect customer’s impression on the shopping experience. The function variation asked for complex processed glass. The ribbon-like façade needs convex curved glass and concave curved glass to form the shape.

The core difficulty of glass making process is that the façade consist of:

5422mm*2379mm（Arc），Convex Curved Glass，8mm Clear Glass HS/3.04mm Clear PVB/8mm Neutral Sunguard N60 on grey#4+20A+12mm Clear Glass HST With Ceramic Frit，Radius 17985mm，With Notch and Step；

5422mm*2303mm（Arc），Concave Curved Glass，8mm Clear Glass HS/3.04mm Clear PVB/8mm Neutral Sunguard N60 on grey#4+20A+12mm Clear Glass HST With Ceramic Frit，Radius 11024mm，With Notch and Step.

REXI WHTB is professional on the manufacturing of oversized insulated glass in China. We can produce maximum 3.3m*12m jumbo size double glazing. Also we can produce 3.3m*12m oversized laminated glass. The client was deeply impressed by REXI WHTB’s experiences and ability on oversized flat glass and oversized concave convex curved glass, and finally choose REXI WHTB to complete this landmark project in Kuwait.

With the largest production facility in China, specialized CNC machinery and over-sized glass manufacturing capabilities, REXI-WHTB Glass is ideally set up to produce both high-volume and one-off specialty glass products cost effectively and quickly. Whatever your project demands — from exterior high-rise windows to large-capacity glass for storefronts or showrooms — REXI-WHTB Glass can manufacture and fabricate the glass products you need to your exacting design and technical specifications.
